| Features | Applications |
| High dense spaces | Telecommunication |
| Ceramic ferrules connectors | CATV,FTTH,LAN |
| Low insertion loss,high return loss | Fiber optic sensors |
| Half the size of standard connector | Optical transmission system |
| Excellent mechanical endurance | Test equipment |
| High credibility and stability | |
| Good in repeatability and exchangeability | |
| 100% Insertion,Return Loss, End face and Interference inspection |
3D Interference Test

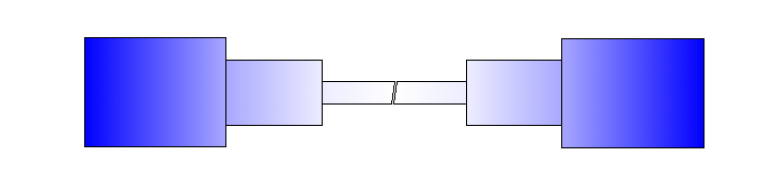

APC--Angled Physical Contact,endface is curved,with 8 degree
UPC--Ultra Physical Contact with an extended polishing for a better surface finish
Connectors&Kits(customer-desginde color for boots and dust caps)
Remark:
1、Housing material—PBT,TPE,TT,Metal material
2、Housing color—Blue(SM/UPC),Green(SM/APC),Beige(MM),Aqua
| Parameter | FC,SC,LC | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Operating Wavelength（nm） | 1310,1550 | 850，1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | |
| Insertion Loss（dB） | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss（dB） | ≥50 | ≥60 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability（dB） | ≤0.1 | ||||||
| Interchangeability（dB） | ≤0.2 | ||||||
| Plug times（times） | ≥1000 | ||||||
| Tensil Strength（N） | ≥100 | ||||||
| Durability（dB） | ≤0.2 | ||||||
| Operating temperature（℃） | -45~+75 | ||||||
| Storage temperature（℃） | -45~+85 | ||||||
1、Specifications may change without notice.
2、Above specification are for device without connector.
| Mode number | Single-Mode | Multi-Mode |
| Length | (10.50±0.05)mm | (10.50±0.01)mm |
| Outer-diameter | (2.4990±0.0005)mm | (2.4990±0.0001)mm |
| Inner-diameter | (0.125+0.001/-0)mm | (0.126-0.129)mm |
| Concentricity | ≤1.0 | ≤4.0 |

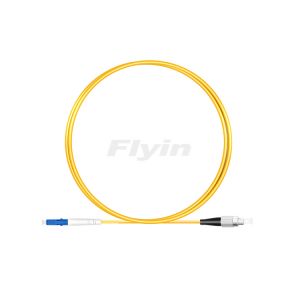

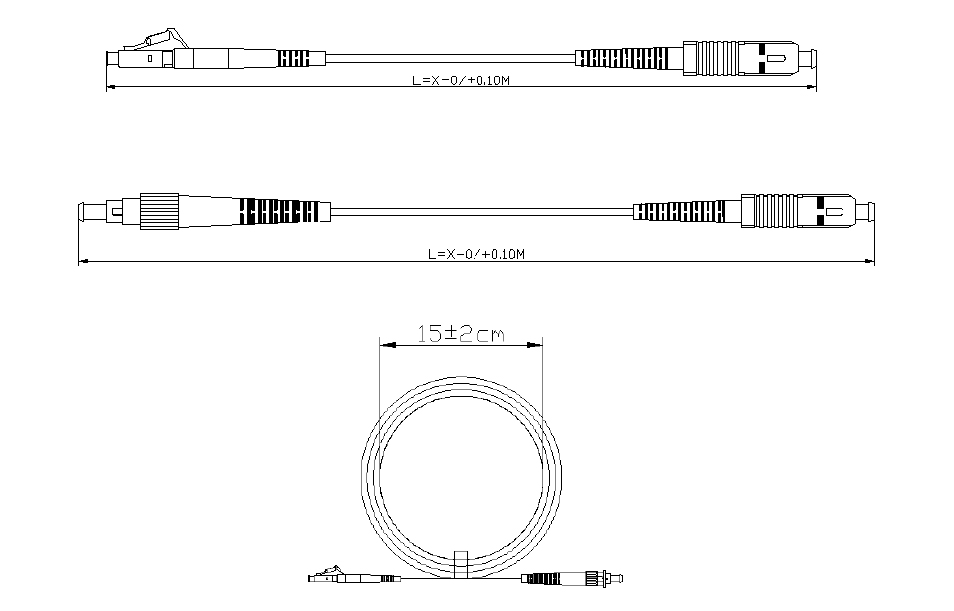

Flyin’s optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.
| Features | Applications |
| High dense spaces | Telecommunication |
| Ceramic ferrules connectors | CATV,FTTH,LAN |
| Low insertion loss,high return loss | Fiber optic sensors |
| Half the size of standard connector | Optical transmission system |
| Excellent mechanical endurance | Test equipment |
| High credibility and stability | |
| Good in repeatability and exchangeability | |
| 100% Insertion,Return Loss, End face and Interference inspection |
3D Interference Test
APC--Angled Physical Contact,endface is curved,with 8 degree
UPC--Ultra Physical Contact with an extended polishing for a better surface finish
Connectors&Kits(customer-desginde color for boots and dust caps)
Remark:
1、Housing material—PBT,TPE,TT,Metal material
2、Housing color—Blue(SM/UPC),Green(SM/APC),Beige(MM),Aqua
| Parameter | FC,SC,LC | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Operating Wavelength（nm） | 1310,1550 | 850，1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | |
| Insertion Loss（dB） | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss（dB） | ≥50 | ≥60 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability（dB） | ≤0.1 | ||||||
| Interchangeability（dB） | ≤0.2 | ||||||
| Plug times（times） | ≥1000 | ||||||
| Tensil Strength（N） | ≥100 | ||||||
| Durability（dB） | ≤0.2 | ||||||
| Operating temperature（℃） | -45~+75 | ||||||
| Storage temperature（℃） | -45~+85 | ||||||
1、Specifications may change without notice.
2、Above specification are for device without connector.
| Mode number | Single-Mode | Multi-Mode |
| Length | (10.50±0.05)mm | (10.50±0.01)mm |
| Outer-diameter | (2.4990±0.0005)mm | (2.4990±0.0001)mm |
| Inner-diameter | (0.125+0.001/-0)mm | (0.126-0.129)mm |
| Concentricity | ≤1.0 | ≤4.0 |
