Current Position： >Optical Transceiver >200G QSFP56/QSFP-DD >200G QSFP56 FR4 2KM 1310nm Optical Transceiver

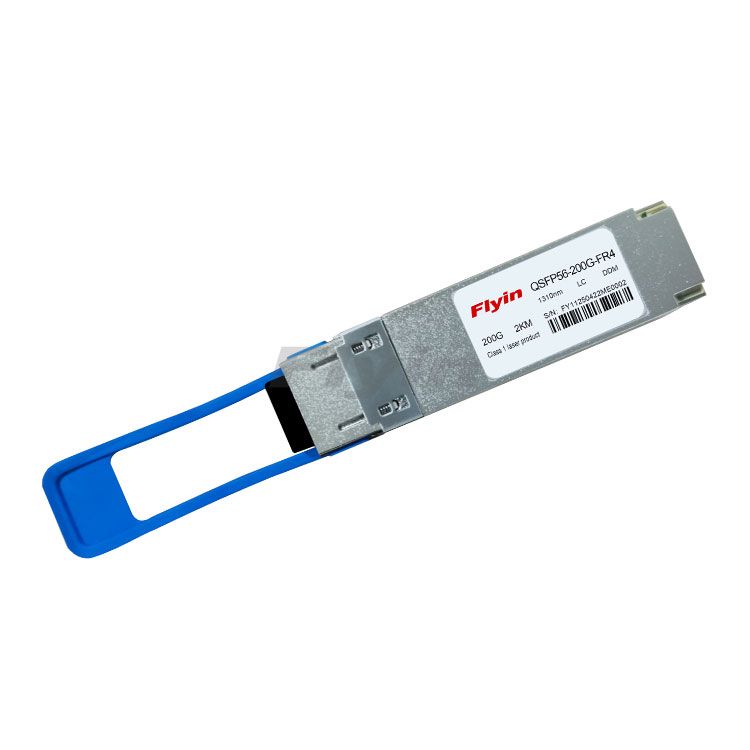

200G QSFP56 FR4 2KM 1310nm Optical Transceiver682a8b698afbe.jpg

200G QSFP56 FR4 2KM 1310nm Optical Transceiver

Flyin's ​​200Gbps 1310nm 2KM QSFP56 FR4 optical module​​ is a high-speed transceiver designed for data centers and high-density network environments. Applications​​: Data center interconnects (DCI), cloud computing, 5G backhaul, and enterprise networks requiring high-density, low-power solutions.

 
Select at least one parameter!! or inquire now

Related Products

Description

Parameters

FeaturesApplication
Hot Pluggable QSFP56 Form Factor2×100GBASE-SR4 Ethernet
Max. Power Consumption 4.5WInfiniband Interconnects
High-speed Electrical CompliantData Center Interconnects
Digital Optical Monitoring Capability for Strong Diagnostic CapabilitiesNVLink Interconnects

Switch & Router Connections


The production workshop show

200G-QSFP56 Transceiver

Model

Rate

Wavelength

Transmission Distance

Output Opt. Pwr.

Rx. Sensitivity

Laser

Interface

FYQ56-85F4-M1B

200Gb/s

850nm

100M

-6.5~4dBm

≤-5.4dBm

VCSEL

MPO

FYQ56-4CF4-10B

200Gb/s

LWDM4

10KM

-4~5dBm

≤-8.2dBm

DML

LC


200G-QSFP-DD Transceiver

Model

Rate

Wavelength

Transmission Distance

Output Opt. Pwr.

Rx. Sensitivity

Laser

Interface

FYQ2D-85O8-M1B

200Gb/s

850nm

100M

-8.4~2.4dBm

≤-10.3dBm

VCSEL

MPO
