EDFA for DWDM System

FLY 1000R Series Optical Transform Unit is a high performance, low-power optical transmission system unit, mainly for optical regeneration, re-amplifying, re-shaping the signals in the transmission process. It can save optical fiber resources and networking cost effectively, and solves the problem that the transmission distance is too long to transmit. With advantages of small volume optical signal, economy and safety, convenient construction and etc, it is widely used in various optical transmission fields and long-distance trunk transmission.

Input Power:

Pre

On-Line

Booster

Other

Output Power:

-10dBm

...

24dBm

Other

Voltage1:

110VAC

220VAC

110-220VAC

-48VDC

Other

Voltage2:

110VAC

220VAC

110-220VAC

-48VDC

Other

W/O

Interface:

SC/PC

FC/PC

LC/PC

Other

ISNMP:

W/O

W

Reply Within 12 Hours

Description

Parameters

PDF

FeaturesApplications
Low Noise Figure: Typical 4.5Pre-Amplifier
High Flatness: Typical 1dBOnline Amplifier
Cover Whole C-Band: Carrier 40 or 80 CHsBooster Amplifier
Redundancy hot swap power module: 110/220VAC and 48VDC can plug MixDWDM Optical System
Perfect Network Interface: Ethernet, RS-485 and RS-232 port
Support Telnet Interface and SNMP network management
Gain can be adjustable by network and manual
High precise AGC and ATC circuit
High saturation output power
Flexible Mechanics and circuit structure(Module,1U rack and Gain Block)
Compatible with Telecordia GR1312-CORE

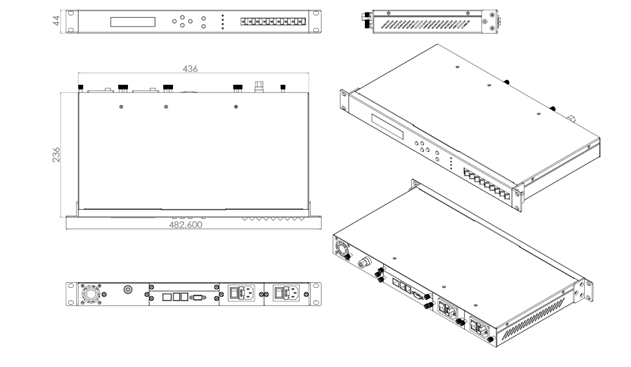

Mechanical Structure

    483*236*44(mm)




The production workshop show

Optical Characteristics

ParameterSymbolMinTypMaxUnit
WavelengthλC152915501564nm
Saturation output power(1)Po--20dBm
Input PowerPi-35-+6dBm
GainG-20-dB
FlatnessFL
1.01.5dB
Noise Figure(2)NF-4.5-dB
Output power stabilityΔPo-±0.05±0.1dB
Return LossRL---45dB
PDGPDG--0.3dB
PMDPMD--0.5ps

1、Optional

2、Test at 0dBm input

Electric Characteristics

ParameterSymbolMinTypMaxUnit
Voltage SupplyVps85/170110/220132/264VAC
ConsumptionP--18W

1、10VAC,220VAC and -48VDC is optional

2、Actual consumption depend on the output power and environment temperature

Environmental Characteristics

ParameterSymbolMinTypMaxUnit
Operating TemperatureTw-5-60
Storage TemperatureTs-40-80
Humidity-10-85%

1、Non-condensing


Specification
