Description
Parameters
| Features | Applications |
| Low insertion Loss | High power EDFA |
| High extinction ratio | Raman amplifier |
| Compact in-line package | Laboratory |
| High stability and reliability | |
| Epoxy free on optical path |
| Parameter | Specification |
| Center Wavelength（nm） | 1310 or 1480 or 1550 |
| Operation Wavelength Range（nm） | ±40 |
| Typical Insertion Loss (@23℃)（dB） | ≤0.4 |
| Maximum Insertion Loss (@23℃)（dB） | ≤0.6 |
| Min. Extinction Ratio (for splitter only) (@23℃)（dB） | ≥23 |
| Min. Return Loss (@23℃)（dB） | ≥50 |
| Operation Temperature(℃) | -10~+75 |
| Storage Temperature(℃) | -40~+85 |
| Fiber Type | PM1310 or PM1550 or Specify |
| Max. Tensile Load (N) | 5 |
| Package Dimension（mm） | Φ5.5×L35 |
| Power Handing (mW) | 500 or Specify |
For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
Specifications may change without notice.

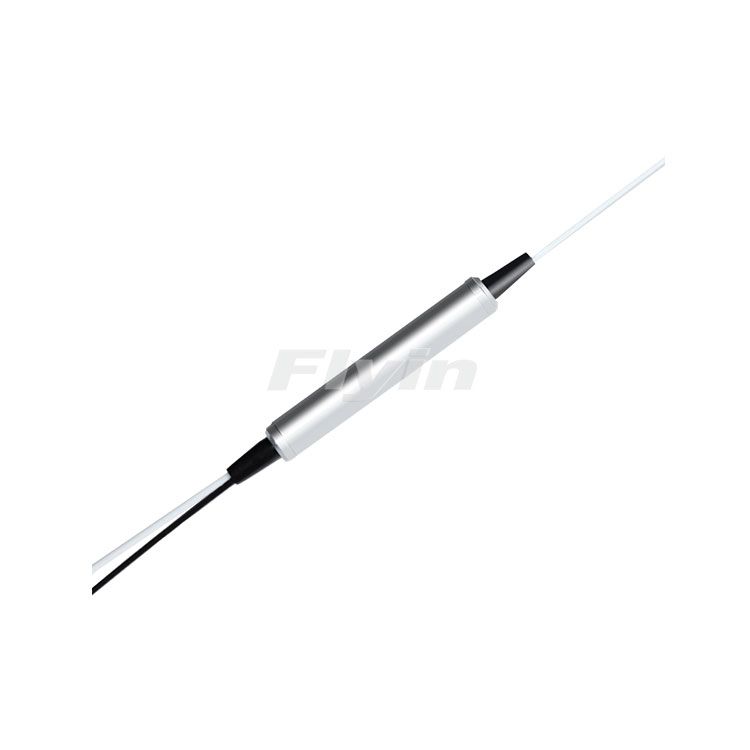

Polarization Beam Combiners (PBC) or Splitters are designed to either combine two orthogonal polarizations into a single fiber or split a single input into its orthogonal linear polarizations through two fiber outputs. The devices on this page feature two legs of polarization-maintaining (PM) fiber on one side of a calcite prism and a single mode (SM) fiber on the other.
| Features | Applications |
| Low insertion Loss | High power EDFA |
| High extinction ratio | Raman amplifier |
| Compact in-line package | Laboratory |
| High stability and reliability | |
| Epoxy free on optical path |
| Parameter | Specification |
| Center Wavelength（nm） | 1310 or 1480 or 1550 |
| Operation Wavelength Range（nm） | ±40 |
| Typical Insertion Loss (@23℃)（dB） | ≤0.4 |
| Maximum Insertion Loss (@23℃)（dB） | ≤0.6 |
| Min. Extinction Ratio (for splitter only) (@23℃)（dB） | ≥23 |
| Min. Return Loss (@23℃)（dB） | ≥50 |
| Operation Temperature(℃) | -10~+75 |
| Storage Temperature(℃) | -40~+85 |
| Fiber Type | PM1310 or PM1550 or Specify |
| Max. Tensile Load (N) | 5 |
| Package Dimension（mm） | Φ5.5×L35 |
| Power Handing (mW) | 500 or Specify |
For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
Specifications may change without notice.
