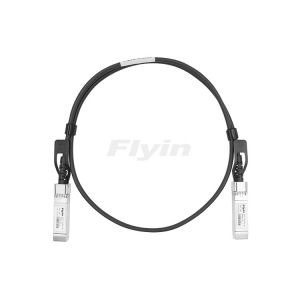

Flyin SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.

Flyin's 25G SFP28 passive copper cable is a high speed, cost-effective 25Gbp/sEthernet connectivity solution designed to meet the growing needs for higher bandwidth in datacenters. The 25G SFP28 passive copper cable contains a single high-speed copper pair, operating at data rates of up to 25Gb/s. Flyin's unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Flyin QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE 802.3ba 40GBASE-CR4. It is offer a low power consumption, short reach intercon- nect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Flyin 100G QSFP28 to QSFP28 Passive Copper Cable assemblies are high performance, cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 100 Gigabit Ethernet, InfiniBand EDR and temperature requirements for performance and reliability. The cables are compliant with SFF-8436 specifications and provide connectivity between devices using QSFP ports.

Flyin QSFP+ to 4 x SFP+ passive copper cables are 40Gb/s to 10Gb/s cable assemblies. The cables are compliant with SFF-8431 and SFF-8436 specifications and provide connectivity between devices using QSFP+ port on one end and multiple SFP+ ports on the other end. Each QSFP+ to SFP+ cable features a single QSFP+ connector (SFF-8436) rated for 40-Gb/s on one end and 4 SFP+ connectors (SFF- 8431), each rated for 10-Gb/s, on the other. The cables use state-of-the-art signal processing technology to fill the expanding need for cost effective data center intercon-nects.

QSFP-DD passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel,and meets 400G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 28AWG through 30AWG-this 400G copper cable assembly features low insertion loss and low cross talk. QSFP-DD uses PAM4 signals for transmission, which doubles the rate. However, there are more stringent requirements for cable insertion loss. For detailed requirements, please see High Speed Characteristics.
