Description
Parameters
| Features | Applications |
| Accurate attenuation value | Fiber optic communication system and simulation |
| Low insertion loss | Optical power level adjustment |
| High return loss | Wavelength Division Multiplexing System |
| Compact design | High Density Data Center |
| Flexibility and high reliability | Debugging and troubleshooting |
Attenuator/attenuation jumper parameter table
| Parameter | Specification |
| Connector | LC, SC, FC, ST, E2000 |
| Type | Male-Female |
| Transmission Mode | Single Mode |
| Attenuation value | 1-30dB |
| Working wavelength | 1260-1620nm |
| Attenuation accuracy | 1-5dB±0.5,6-10dB ±0.7，>10-15dB±1.0 |
| Return Loss | ≥65dB |
| Maximum input optical power | 200mW |
| Working temperature | -40～80℃ |
| Storage temperature | -40～85℃ |
| Polarization Dependent Loss | ≦0.2dB |
| Humidity | 95%RH |

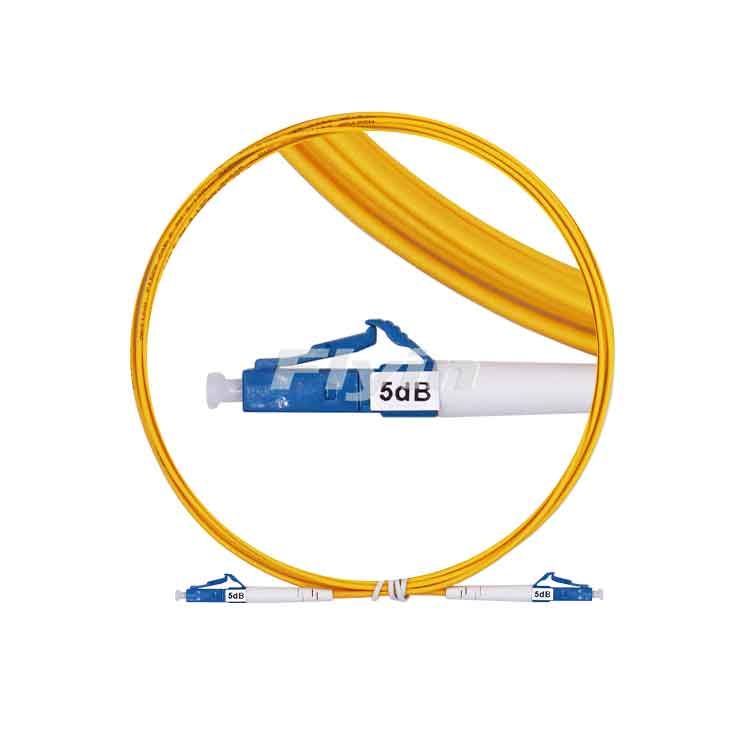

Flyin LC UPC Attenuator Fiber Patch Cord integrates precise optical attenuation functionality into a standard connectorized patch cord. Featuring high return loss, compact design, plug-and-play operation, and flexible configuration options, it serves as an indispensable tool for test & measurement, optical power adjustment, system maintenance, and high-density deployments. This solution efficiently and reliably resolves issues caused by excessive signal strength in optical communication systems.
| Features | Applications |
| Accurate attenuation value | Fiber optic communication system and simulation |
| Low insertion loss | Optical power level adjustment |
| High return loss | Wavelength Division Multiplexing System |
| Compact design | High Density Data Center |
| Flexibility and high reliability | Debugging and troubleshooting |
Attenuator/attenuation jumper parameter table
| Parameter | Specification |
| Connector | LC, SC, FC, ST, E2000 |
| Type | Male-Female |
| Transmission Mode | Single Mode |
| Attenuation value | 1-30dB |
| Working wavelength | 1260-1620nm |
| Attenuation accuracy | 1-5dB±0.5,6-10dB ±0.7，>10-15dB±1.0 |
| Return Loss | ≥65dB |
| Maximum input optical power | 200mW |
| Working temperature | -40～80℃ |
| Storage temperature | -40～85℃ |
| Polarization Dependent Loss | ≦0.2dB |
| Humidity | 95%RH |
