Description
Parameters
| Features | Application |
| MPO connector complied with IEC-61754-7 | SAN（Storage Area Network）data center LAN |
| A quick-to-deploy | LAN/SAN switch equipment distribution area (EDA) |
| Scalable solution. Lower installation cost | Emerging 40G and 100G protocol |
| High compatibility, flexibility and system performance |
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss（dB） | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 |
| Max. | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability（dB） | ≤0.3 | ||||||
| Durability（N） | ≥66 | ||||||
| Operating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature(℃) | -40~+80 | ||||||

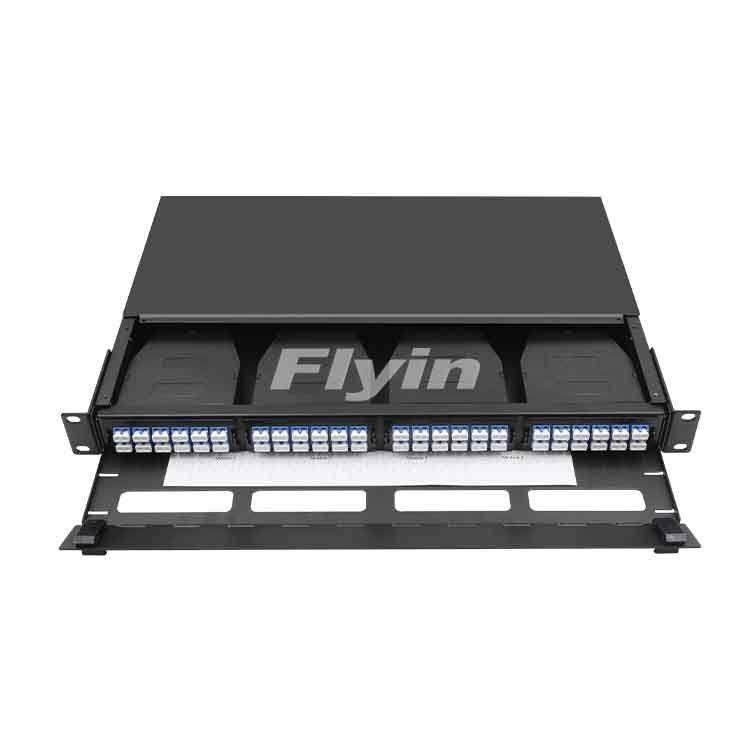

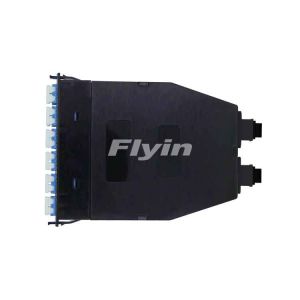

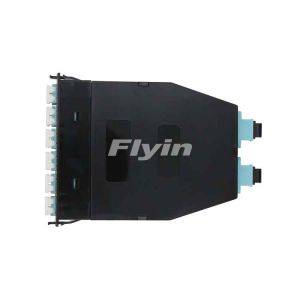

Flyin high-density fiber solution leverages 4x modular MPO/LC cassettes in a rackmount enclosure to convert 2x MPO-12 single-mode trunk cables into 12x LC Duplex ports.
| Features | Application |
| MPO connector complied with IEC-61754-7 | SAN（Storage Area Network）data center LAN |
| A quick-to-deploy | LAN/SAN switch equipment distribution area (EDA) |
| Scalable solution. Lower installation cost | Emerging 40G and 100G protocol |
| High compatibility, flexibility and system performance |
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss（dB） | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 |
| Max. | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability（dB） | ≤0.3 | ||||||
| Durability（N） | ≥66 | ||||||
| Operating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature(℃) | -40~+80 | ||||||
