Description
Parameters
| Features | Application |
| Hot Pluggable QSFP+ form factor. | 40GBASE-SR4 40G Ethernet. |
| Flexible choice of compatibility, distance and interface for all need | Breakout to 4 x 10GBASE-SR Ethernet. |
| Low power consumption. | Proprietary interconnections. |
| Tested on brand devices for performance, quality, and reliability. |
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQXP-85A4-T1B | 40Gb/s | 850nm | 100M | -7~1dBm | ≤-11.1dBm | VCSEL | MPO |
FYQXP-4LA4-10B | 40Gb/s | CWDM4 | 10KM | -6~2.3dBm | ≤-11.5dBm | DFB | LC |
FYQXP-4LA4-40B | 40Gb/s | CWDM4 | 40KM | -2.7~4.5dBm | ≤-21.2dBm | DFB | LC |
FYQXP-4LA4-80B | 40Gb/s | CWDM4 | 80KM | 1~6dBm | ≤-21.2dBm | EML | LC |

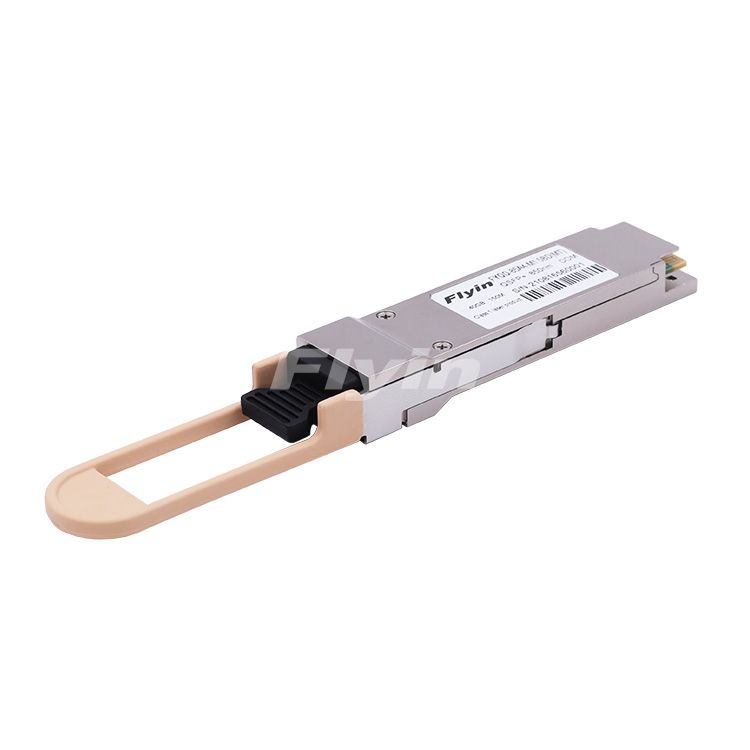

Flyin 40G QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m. This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.
| Features | Application |
| Hot Pluggable QSFP+ form factor. | 40GBASE-SR4 40G Ethernet. |
| Flexible choice of compatibility, distance and interface for all need | Breakout to 4 x 10GBASE-SR Ethernet. |
| Low power consumption. | Proprietary interconnections. |
| Tested on brand devices for performance, quality, and reliability. |
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQXP-85A4-T1B | 40Gb/s | 850nm | 100M | -7~1dBm | ≤-11.1dBm | VCSEL | MPO |
FYQXP-4LA4-10B | 40Gb/s | CWDM4 | 10KM | -6~2.3dBm | ≤-11.5dBm | DFB | LC |
FYQXP-4LA4-40B | 40Gb/s | CWDM4 | 40KM | -2.7~4.5dBm | ≤-21.2dBm | DFB | LC |
FYQXP-4LA4-80B | 40Gb/s | CWDM4 | 80KM | 1~6dBm | ≤-21.2dBm | EML | LC |
