Description
Parameters
| Fiber type | 9/125 OS2 Single-Mode | Fiber connector | MTP® Female, APC |
| Return loss | SM>50dB | Insertion loss | SM(G657A1)<1.0dB |
| Insert-pull test | 50times, IL<0.5dB | Size | 80mm*10mm |
| Operation temperature | -40 to 75°C (-40 to 167°F) |

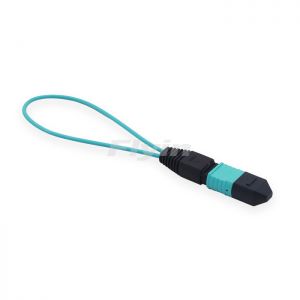

Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations.For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
| Fiber type | 9/125 OS2 Single-Mode | Fiber connector | MTP® Female, APC |
| Return loss | SM>50dB | Insertion loss | SM(G657A1)<1.0dB |
| Insert-pull test | 50times, IL<0.5dB | Size | 80mm*10mm |
| Operation temperature | -40 to 75°C (-40 to 167°F) |
