Description
Parameters
| Features | Application |
| Hot-pluggable SFP+ footprint | Man / Lan |
| With DDM function | Data storage and communication industry switches / routers |
| IEEE 802.3 Ethernet compliant | Enterprise Network SAN |
| SFP+ MSA protocol compliant | High performance computing cluster |
| Conform to SDH / SONET transmission standard | Fibre channel |
| Infiniband QDR and base station / BBU / RRU |

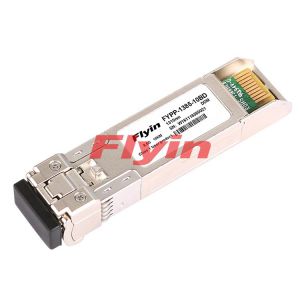

10Gb/s SFP+ Dual Fiber Optical Transceiver
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
| FYPP-8596-M3BD | 10Gb/s | 850nm | 300M | -6~-1dBm | ≤-10dBm | VCSEL | LC/SC |
| FYPP-1396-02BD | 10Gb/s | 1310nm | 2KM | -6~-0.5dBm | ≤-14.4dBm | FP | LC/SC |
| FYPP-1396-10BD | 10Gb/s | 1310nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC/SC |
| FYPP-1596-40BD | 10Gb/s | 1550nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPP-1596-80BD | 10Gb/s | 1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPC-**96-10BD | 10Gb/s | 1270nm~1610nm | 10KM | -6~-1dBm | ≤-15dBm | DFP | LC/SC |
| FYPPC-**96-40BD | 10Gb/s | 1470nm~1610nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPC-**96-80BD | 10Gb/s | 1470nm~1610nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPD-**96-40BD | 10Gb/s | C17~C61 | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPD-**96-80BD | 10Gb/s | C17~C61 | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
Remark: Above "**" refers to the corresponding wavelength.
For CWDM models, it refers to the wavelength 1270nm~1610nm.
For DWDM models, it refers to the wavelength C17(1563.86)~C61(1528.77nm).

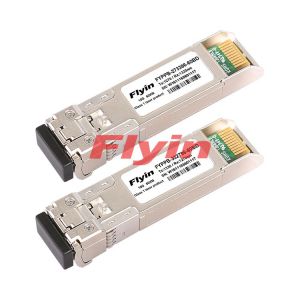

10Gb/s SFP+BIDI Single Mode Optical Transceiver
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
| FYPPB-2396-10BD | 10Gb/s | Tx1270/Rx1330nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-3296-10BD | 10Gb/s | Tx1330/Rx1270nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-2396-40BD | 10Gb/s | Tx1270/Rx1330nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-3296-40BD | 10Gb/s | Tx1330/Rx1270nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-2396-60BD | 10Gb/s | Tx1270/Rx1330nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-3296-60BD | 10Gb/s | Tx1330/Rx1270nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-4596-80BD | 10Gb/s | Tx1490/Rx1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
| FYPPB-5496-80BD | 10Gb/s | Tx1550/Rx1490nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
Flyin's 10G SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards etc. Featuring low power consumptionand and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
| Features | Application |
| Hot-pluggable SFP+ footprint | Man / Lan |
| With DDM function | Data storage and communication industry switches / routers |
| IEEE 802.3 Ethernet compliant | Enterprise Network SAN |
| SFP+ MSA protocol compliant | High performance computing cluster |
| Conform to SDH / SONET transmission standard | Fibre channel |
| Infiniband QDR and base station / BBU / RRU |
10Gb/s SFP+ Dual Fiber Optical Transceiver
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
| FYPP-8596-M3BD | 10Gb/s | 850nm | 300M | -6~-1dBm | ≤-10dBm | VCSEL | LC/SC |
| FYPP-1396-02BD | 10Gb/s | 1310nm | 2KM | -6~-0.5dBm | ≤-14.4dBm | FP | LC/SC |
| FYPP-1396-10BD | 10Gb/s | 1310nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC/SC |
| FYPP-1596-40BD | 10Gb/s | 1550nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPP-1596-80BD | 10Gb/s | 1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPC-**96-10BD | 10Gb/s | 1270nm~1610nm | 10KM | -6~-1dBm | ≤-15dBm | DFP | LC/SC |
| FYPPC-**96-40BD | 10Gb/s | 1470nm~1610nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPC-**96-80BD | 10Gb/s | 1470nm~1610nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPD-**96-40BD | 10Gb/s | C17~C61 | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPD-**96-80BD | 10Gb/s | C17~C61 | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
Remark: Above "**" refers to the corresponding wavelength.
For CWDM models, it refers to the wavelength 1270nm~1610nm.
For DWDM models, it refers to the wavelength C17(1563.86)~C61(1528.77nm).
10Gb/s SFP+BIDI Single Mode Optical Transceiver
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
| FYPPB-2396-10BD | 10Gb/s | Tx1270/Rx1330nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-3296-10BD | 10Gb/s | Tx1330/Rx1270nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-2396-40BD | 10Gb/s | Tx1270/Rx1330nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-3296-40BD | 10Gb/s | Tx1330/Rx1270nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-2396-60BD | 10Gb/s | Tx1270/Rx1330nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-3296-60BD | 10Gb/s | Tx1330/Rx1270nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-4596-80BD | 10Gb/s | Tx1490/Rx1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
| FYPPB-5496-80BD | 10Gb/s | Tx1550/Rx1490nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
