Description
Parameters
| Features | Application |
| Hot Pluggable QSFP28 form factor. | 100GBASE-SR4 100G Ethernet. |
| Single MPO12 receptacle | Date center. |
| Low power consumption. |

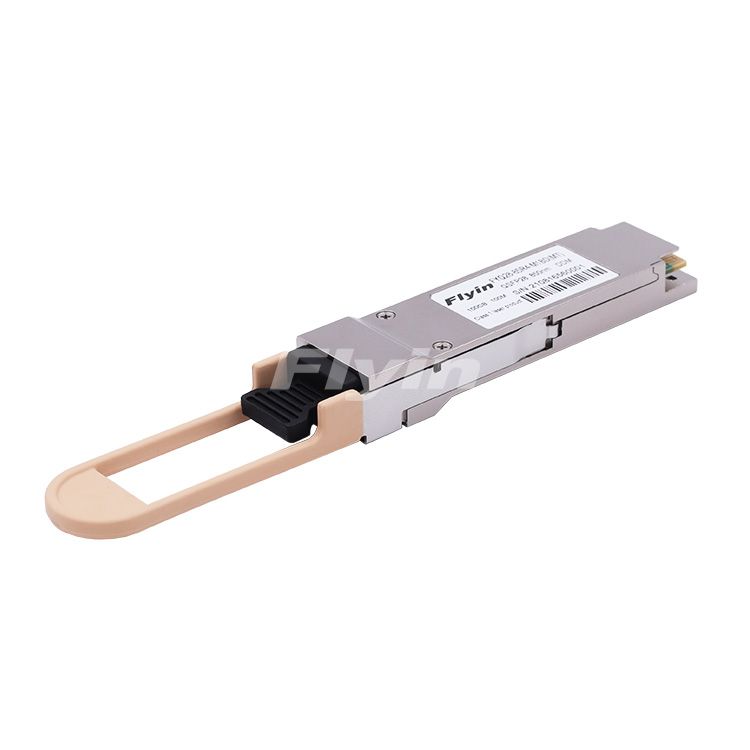

100G-QSFP28 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ28-85R4-M1B | 100Gb/s | 850nm | 100M | -8~2dBm | ≤-10.3dBm | VCSEL | MPO |
FYQ28-4CR4-02B | 100Gb/s | CWDM4 | 2KM | -6~2dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-30B | 100Gb/s | LWDM4 | 30KM | -2~4dBm | ≤-18dBm | DML | LC |
FYQ28-4LR4-40B | 100Gb/s | LWDM4 | 40KM | -2~4dBm | ≤-18dBm | EML | LC |
FYQ28-4LR4-80B | 100Gb/s | LWDM4 | 80KM | 2~6dBm | <-28dBm | EML | LC |
Flyin 100G transceiver module portfolio offers a wide variety of high-density and low-power 100G connectivity options for data center, enterprise and telecom application. It includes 100G QSFP28 modules, 100G CFP/CFP2/CFP4 modules, 100G DACs/AOCs and their breakout cables. Featured products such as 100G and OTU4 QSFP28 Dual Rate Modules and 100G QSFP28 Single Lambda modules are also available for choice.
| Features | Application |
| Hot Pluggable QSFP28 form factor. | 100GBASE-SR4 100G Ethernet. |
| Single MPO12 receptacle | Date center. |
| Low power consumption. |
100G-QSFP28 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ28-85R4-M1B | 100Gb/s | 850nm | 100M | -8~2dBm | ≤-10.3dBm | VCSEL | MPO |
FYQ28-4CR4-02B | 100Gb/s | CWDM4 | 2KM | -6~2dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-30B | 100Gb/s | LWDM4 | 30KM | -2~4dBm | ≤-18dBm | DML | LC |
FYQ28-4LR4-40B | 100Gb/s | LWDM4 | 40KM | -2~4dBm | ≤-18dBm | EML | LC |
FYQ28-4LR4-80B | 100Gb/s | LWDM4 | 80KM | 2~6dBm | <-28dBm | EML | LC |
