| Features | Applications |
| Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX | 10/100/1000Mbps fast optical Ethernet long-distance transmitting network |
| Supporting full-duplex and half-duplex and its auto-sensed | |
| Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation | |
| Supporting the transmission of extra-long VLAN packets | |
| Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets | |
| Supporting STP to form a redundant network |
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength(nm) | Mulitmode:850;? Single-mode:1310/1550nm |
| Distance | Category-5 twisted pair: 100m Fiber：multi-mode 50/125，62.5/125μm（the max distance up to(220m or 550m） Fiber：Single -mode 8/125,8.7/125,9/125,10/125μm（the max distance up to 20 -80km） |
| Port | One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode,dual fiber:SC(50,62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1k |
| Buffer space | 512kbit |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs;? cut-through: 0.9μs |
| BER | ＜19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70℃ |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
| Model | wavelength | Connector | TX Port | Fiber Type | TX Power (dBm) | RX Sen.(dBm) | Distance |
| FM-3101-L2A | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| FM-3101-L2B | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| FM-3101-L4A | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| FM-3101-L4B | T1550/R1310 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| FM-3101-L6A | T1490/R1550 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |
| FM-3101-L6A | T1550/R1490 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |

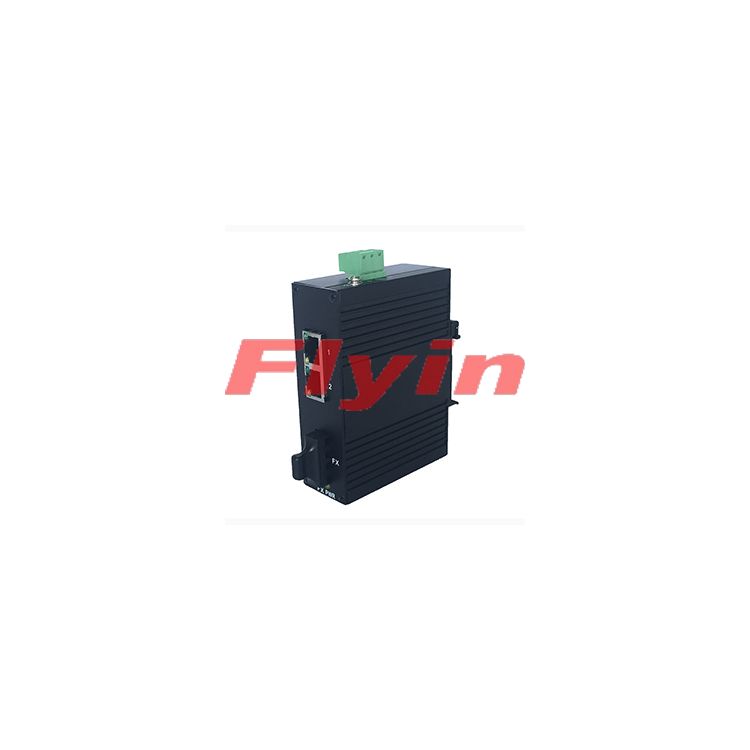

Flyin Optronics’ FM-3100 series 10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections:10 /100/1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 220m (fiber size: 62.5/125μm)/550m (fiber size: 50/125μm) via fiber optical cables. It supports transmission in multi-mode dual fiber; single-mode dual fiber, single-mode single fiber.
| Connector： |
SC SC/ST SC/FC |
| TX Port： |
SFP RJ45 |
| Fiber Mode： |
MM/Duplex SM/Duplex SM/BI-DI |
| Distance： |
550m 20km 40km 60km 80km |
| Model： |
FM-3100-02 FM-3100-L2 FM-3100-L4 FM-3100-L6 FM-3101-L2A FM-3101-L2B FM-3101-L4A FM-3101-L4B FM-3101-L6A FM-3101-L6B |
| Wavelength： |
850nm 1310nm T1310/R1550 T1550/R1310T 1490/R1550 T1550/R1490 |
| Features | Applications |
| Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX | 10/100/1000Mbps fast optical Ethernet long-distance transmitting network |
| Supporting full-duplex and half-duplex and its auto-sensed | |
| Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation | |
| Supporting the transmission of extra-long VLAN packets | |
| Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets | |
| Supporting STP to form a redundant network |
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps |
| Standard | IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength(nm) | Mulitmode:850;? Single-mode:1310/1550nm |
| Distance | Category-5 twisted pair: 100m Fiber：multi-mode 50/125，62.5/125μm（the max distance up to(220m or 550m） Fiber：Single -mode 8/125,8.7/125,9/125,10/125μm（the max distance up to 20 -80km） |
| Port | One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode,dual fiber:SC(50,62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Media conversion |
| MAC address table | 1k |
| Buffer space | 512kbit |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs;? cut-through: 0.9μs |
| BER | ＜19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power supply | DC5V 1A (external), AC220V 0.5A/DC-48 (internal) |
| Power consumption | 5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70℃ |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | External power supply: 26mmx 70mm x 95mm Internal power supply: 30mm x 110mm x 140m |
| Model | wavelength | Connector | TX Port | Fiber Type | TX Power (dBm) | RX Sen.(dBm) | Distance |
| FM-3101-L2A | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| FM-3101-L2B | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| FM-3101-L4A | T1310/R1550 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| FM-3101-L4B | T1550/R1310 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| FM-3101-L6A | T1490/R1550 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |
| FM-3101-L6A | T1550/R1490 | SC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |
