Product Highlights
MTP PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Cable Jacket Available in OFNP and LSZH Fire Rating
Custom Lengths and Colors Available
Simple Pinning and Polarity Reconfiguration
Ideal for 40G/100G Indoor Connections
| Cnnector | MTP Pro | Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm | Cable Jacket | OFNP/LSZH |
| 40/100G Ethernet Distance | 150m @ 850nm | 10G Ethernet Distance | 400m @ 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Trunk Diameter | 3.0mm-17.3mm | Installation Tensile Load | 66N |
| Operating Temperature | -10~+70℃ | Storage Temperature | -40~+85℃ |

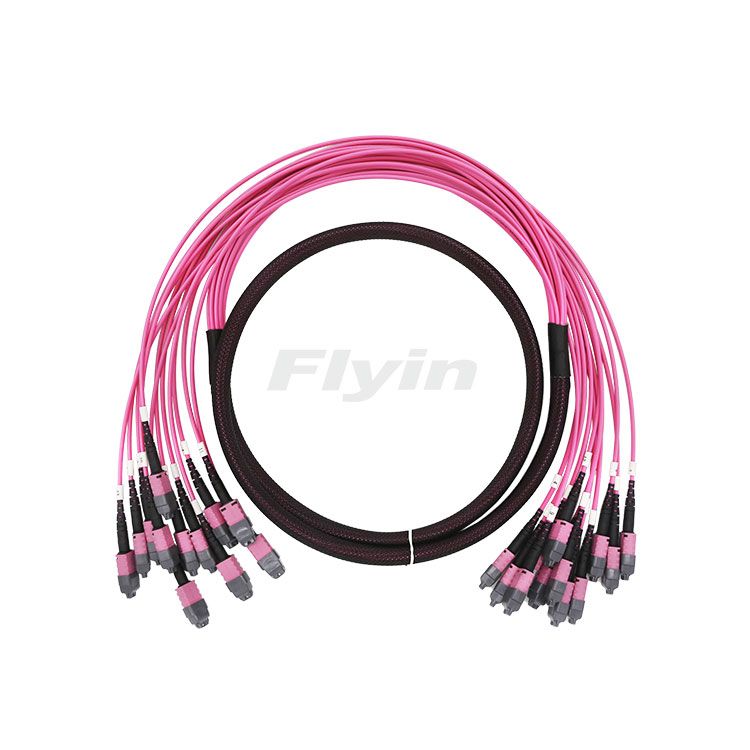

The MTP® PRO patch cord is bend-insensitive and pre-terminated with MTP® PRO connectors, factory polished for low loss performance.
Product Highlights
MTP PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Cable Jacket Available in OFNP and LSZH Fire Rating
Custom Lengths and Colors Available
Simple Pinning and Polarity Reconfiguration
Ideal for 40G/100G Indoor Connections
| Cnnector | MTP Pro | Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm | Cable Jacket | OFNP/LSZH |
| 40/100G Ethernet Distance | 150m @ 850nm | 10G Ethernet Distance | 400m @ 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Trunk Diameter | 3.0mm-17.3mm | Installation Tensile Load | 66N |
| Operating Temperature | -10~+70℃ | Storage Temperature | -40~+85℃ |
