Description
Parameters
| Features | Applications |
| Low insertion loss | Optical Signal Switching and Routing |
| High extinction ratio | Optical Network Monitoring |
| High isolation | Testing of Fiber Optic Component |
| high stability and reliability | Military Communications |
| Parameters | Specification |
| Operating Wavelength（nm） | 1310z±30 or 1550±30 |
| Insertion Loss（dB） | Typ: 0.6 Max: 0.8 |
| Return Loss（dB） | ≥50 |
| Cross Talk（dB） | ≥55 |
| Extinction Ratio（dB） | ≥18 |
| WDL（dB） | ≤0.25 |
| TDL（dB） | ≤0.25 |
| Repeatability（dB） | ≤0.02 |
| Power Supply（V） | 3.0 or 5.0 |
| Lifetime（Times） | ≥107 |
| Switch Time（ms） | ≤8 |
| Transmission Power（mW） | ≤300 (High power is available) |
| Operating Temperature（℃） | -20 ~ +70 |
| Storage Temperature（℃） | -40 ~ +85 |
| Fiber Typle | Panda PM fiber |
| Dimension（mm） | L27 x W12 x H8.2 |

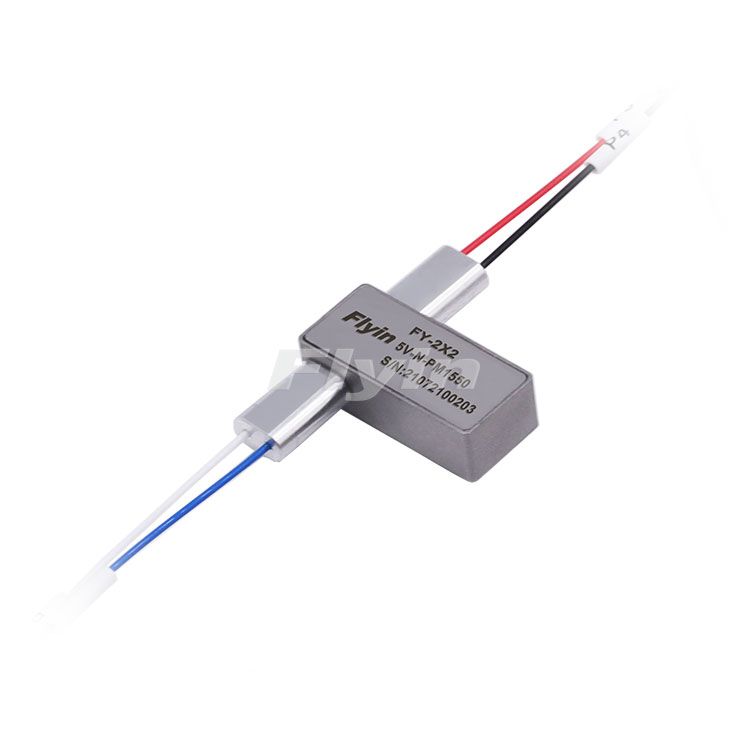

Flyin Optronics' polarization maintaining (PM) fiber switches are fabricated from PM panda fibers and high-quality connectors that are compatible with industry standards. They are able to maintain a well-defined state of polarization (SOP) of the light.
| Features | Applications |
| Low insertion loss | Optical Signal Switching and Routing |
| High extinction ratio | Optical Network Monitoring |
| High isolation | Testing of Fiber Optic Component |
| high stability and reliability | Military Communications |
| Parameters | Specification |
| Operating Wavelength（nm） | 1310z±30 or 1550±30 |
| Insertion Loss（dB） | Typ: 0.6 Max: 0.8 |
| Return Loss（dB） | ≥50 |
| Cross Talk（dB） | ≥55 |
| Extinction Ratio（dB） | ≥18 |
| WDL（dB） | ≤0.25 |
| TDL（dB） | ≤0.25 |
| Repeatability（dB） | ≤0.02 |
| Power Supply（V） | 3.0 or 5.0 |
| Lifetime（Times） | ≥107 |
| Switch Time（ms） | ≤8 |
| Transmission Power（mW） | ≤300 (High power is available) |
| Operating Temperature（℃） | -20 ~ +70 |
| Storage Temperature（℃） | -40 ~ +85 |
| Fiber Typle | Panda PM fiber |
| Dimension（mm） | L27 x W12 x H8.2 |
