Flyin 2108(H) 1U WDM Transmission Platform

2108 is a cost effective, 1 RU chassis and multi-service WDM transmission platform which provides 8 wavelengths for point to point application, or 4 wavelengths ring application per device, more wavelengths application is possible by stacking multiple boxes at each location. Each channel port supports bit rate from 1Gb/s to 10Gb/s. It integrates 3R (CDR) for every channel to get better performance. LLF and TX sync functions are also supported, and can be configured by software. It supports 1+1 optical channel and optical line protection. It is stackable for future expansion. 2108 complies with standard of ITU G.709, FCC, RoHS and VCCI.

Select at least one parameter!! or inquire now

Related Products

Description

Parameters

FeaturesApplications
8 channel of multiservice transmission:Hot pluggable SFP/SFP+ 1Gb/s to 40Gb/s;Point to point with maximum transmission capacity of 80G; in dual fiber dual direction

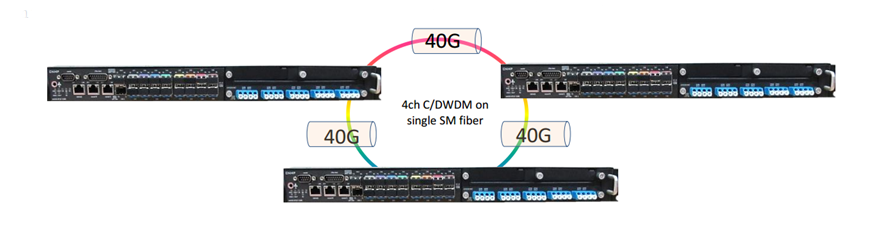

Point to point, ring and stacking topology;




3R (CDR) for all channel,2108(H) Support GFEC and EFEC;
EDFA for amplification;
1+1 Optical channel protection, 1+1 OLP protection;
Configurable LLF and Configurable Tx Sync;
Pluggable power supply, Pluggable fan tray, Pluggable dust filter;


Ordering Information

WDM Transmission System Platform
Platform:2108Support GFEC & EFEC


Power Supply:Dual ACDual DCAC & DCCustom
WDM Card
Channel:2 Channels4 Channels8 Channels16 Channels
Wavelength:CWDMDWDMCustom

Physical Network?Topology:Dual-fiber bidirectionalSingle-fiber bidirectional


Function:Band D21-D28Band D29-D36PTPRingCustom
EDFA Card
Maxmum Output:
+12dBm+17dBmCustom

Wavelength:Red bandBlue bandC band

Type:Pre AmplifyBooster AmplifierLine Amplifier

Function:Tap portOSC


DCM Card
Transmission Distance:20KM40KM60KM80KMCustom
Type:G652G655 Fiber


OLP Card
Function:1+1 Protection





The production workshop show

Technical Parameters:

ParametersIndicators
Single system maximum capacity8 Channels/ 80 Gbps
WavelengthComply with ITU-I G.695 standard
Transmission RatePDH/SDH/SONET:ATM、STM-1~STM-64、OC-3~OC-192
Ethernet:FE、GE、10GE、40GE
FICON/ESCON/Fiber Channel: 1xFC、2xFC、4xFC、8xFC
CPRI2/4/5/10、OBSAI1/2/4/8
SDI、CATV etc
Interface8*100Mbps~10Gbps SFP/SFP+ port
2*OSC SFP port
1*Mux/Demux WDM Slot
2*EDFA/OLP/DCM Slot
LAN(RJ45)/*OSC(SFP LC)/RS232C(DB9)
Physical Network TopologyPoint to point, point to multipoint, link, loop, single-fiber bi-directional and so on
Monitoring ProtocolSNMP/Syslog/Telnet/ARP/ICMP/Web GUI
Dimension1U,440(W) X 393(D) X 44.4(H) mm
WeightChassis7.5 kg
TemperatureWorking0℃ ~ 50℃
Storage-40℃ ~ 85℃
Power SupplyAC: 100~120/200~240V 50~60Hz, DC :-48V
CertificateVCCI: Class A / CE:EN55022,EN55024,EN61000-3-2,EN61000-3-3 / FCC: Part 15 B
Power Consumption≤100W
