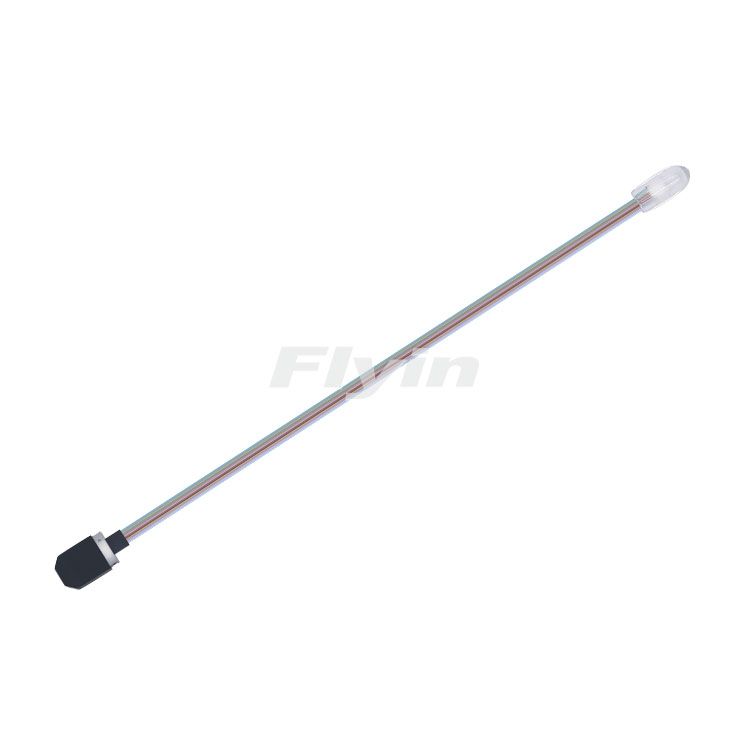

8CH FA-MT (8°)65fa769b78014.jpg

8CH FA-MT (8°)

Flyin FA-MT with high transmission rate, low comsuption, high stability and reliability. FA can be customized. Flyin has NACHI SM1515AP cutting equipment and YGN-590RSM-FA (Yagishita Giken) Core pitch measuring equipment. By optimizing design and precision machining processes, FA-MT can achieve better coupling transmission efficiency, ensure product stability and reliability, and bring better user experience.

Select at least one parameter!! or inquire now

Related Products

Description

Parameters

Material

Quartz glass

Pyrex glass

Tempax glass



Features

Small size

high coupling efficiency

high reliability

good high temperature stability


The production workshop show

Parameters

Unit

specifications

Operating wavelength

---

1310&1550/850

Channel Number

---

4/8/16/32/48/64/128

Core pitch toerance

um

±0.5

Polishing length toerance

mm

±0.3

Width

mm

±0.1

Height

mm

±0.1

Polishing Angle toerance

°

±0.3/0.5

Polishing top Angle toerance

°

±0.5

Insertion Loss

dB

≤0.3

Return Loss

dB

≥55

Operating temperature

-40 - 85


Parameters

Unit

specifications(min)

specifications(max)

Lid size

mm

L1.5 /W0.5 /H0.17

L15 / W22 /H2

V- groove size

mm

L2.0 /W0.5 /H0.5

L20 / W22 /H2

Bare fiber protrusion length

mm

0.2±0.05

0.2±0.1

Core pitch

um

250um±0.3um

250um±1.0um

Bare fiber degree

°

0°/8°/42.5°/45°±0.3

0°/8°/42.5°/45°±0.3

Total length

mm

±0.3

NA

IL of FA side FA

dB

≤0.3

IL of MT side

dB

≤0.3

Uniformity of&nbsp
