Current Position： >Optical Transceiver >200G QSFP56/QSFP-DD >200Gb/s QSFP56/QSFP-DD Transceiver
200Gb/s QSFP56/QSFP-DD Transceiver65716e588138e.jpg

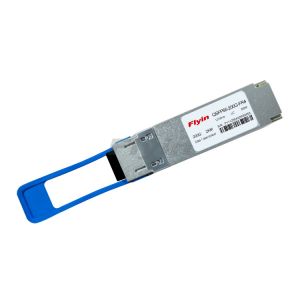

200Gb/s QSFP56/QSFP-DD Transceiver

Flyin 200G transceiver complies with the CMIS4.04, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.

 
Select at least one parameter!! or inquire now

Related Products

Description

Parameters

FeaturesApplication
Hot Pluggable QSFP-DD Form Factor2×100GBASE-SR4 Ethernet
Max. Power Consumption 4.5WInfiniband Interconnects
High-speed Electrical CompliantData Center Interconnects
Digital Optical Monitoring Capability for Strong Diagnostic CapabilitiesNVLink Interconnects

Switch & Router Connections


The production workshop show

200G-QSFP56 Transceiver

Model

Rate

Wavelength

Transmission Distance

Output Opt. Pwr.

Rx. Sensitivity

Laser

Interface

FYQ56-85F4-M1B

200Gb/s

850nm

100M

-6.5~4dBm

≤-5.4dBm

VCSEL

MPO

FYQ56-4CF4-10B

200Gb/s

LWDM4

10KM

-4~5dBm

≤-8.2dBm

DFB

LC


200G-QSFP-DD Transceiver

Model

Rate

Wavelength

Transmission Distance

Output Opt. Pwr.

Rx. Sensitivity

Laser

Interface

FYQ2D-8508-M1B

200Gb/s

850nm

100M

-8.4~2.4dBm

≤-10.3dBm

VCSEL

MPO
