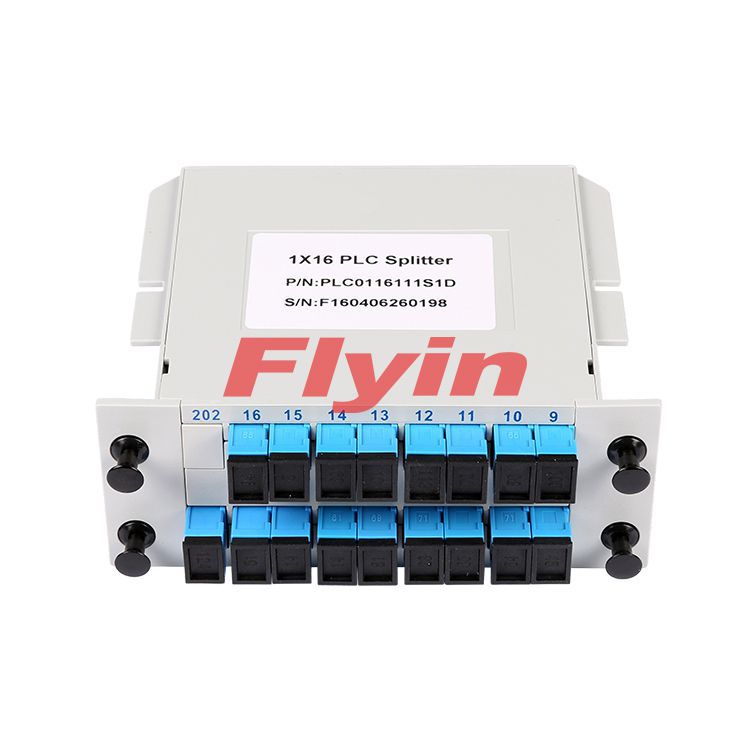

PLC Splitter - 插卡式式

平面波导型光分路器(PLC Splitter)是一种基于石英基板集成波导光功率分配器件,具有体积小,工作波长范围宽,可靠性高,分光均匀性好等特点,特别使用于无源光网络(EPON,GPON等)中连接局端和终端设备并实现光信号的分路,提供1×N和2×N全系列产品,并为客户订制适合各种场合的光分路器。

请至少选择一个参数!!或者 立即咨询

相关产品

产品描述

产品参数

FeaturesApplications
Low Insertion lossFTTX Systems
Low PDLPON Networks
Compact DesignCATV Links
Good channel-to-channel uniformityOptical Signal Distribution
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature:From -40℃ to 85℃
High Reliability and Stability


Package size and pigtail specifications




生产车间展示

Specifications 1×N PLC Splitter

Parameters1×21×41×81×161×321×641×128
Operating Wavelength(nm)1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformit(dB)0.40.60.81.21.52.02.5
Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
Return Loss(dB)(P/S Grade)55/5055/5055/5055/5055/5055/5055/50
Directivity(dB)55555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.50.5
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85
Device Dimension(mm)40×4×440×4×440×4×450×7×450×7×460×12×4N/A
Module Dimension(mm)100×80×10120×80×18141×115×18
Mini-Module Dimension(mm)50×7×460×12×480×20×6100×40×6N/A

Specifications 2×N PLC Splitter

Parameters2×22×42×82×162×322×642×128
Operating Wavelength(nm)1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss (dB) P/S Grade)3.9/4/27.3/7.610.5/1114.4/14.617.4/17.921.0/21.524.5/25.0
Loss Uniformity(dB)≤0.6≤1.0≤1.2≤1.5≤1.8≤2.2≤2.5
Polarization Dependent Loss(dB)≤0.2≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4
Return Loss(dB)(P/S Grade)≥55≥55≥55≥55≥55≥55≥55
Directivity(dB)55555555555555
Wavelength Dependent Loss(dB)≤0.3≤0.4≤0.5≤0.5≤0.5≤0.5≤0.5
Fiber Length (m)1.5(±0.1)or customer specified
Temperature Stability(-40~85℃)(dB)≤0.5
Operating Temperature(℃)-20~+75
Storage Temperature(℃)-40~+85
Maximum Power Handling (mW)500

1、The above parameters were measured at room temperature, but not including connectors data.

2、Add an additional 0.2dB loss per connector,Return Loss≥55dB(APC),≥50dB(UPC).

ABS type:

Item1×21×41×81×161×321×642×22×42×82×162×32
(L*W*H)(mm)100*80*10100*80*10?
120*80*18
120*80*18?
140*115*18
140*115*18100*80*10120*80*18140*115*18
